Transponder Key Programming -Coded to Your Vehicle On-Site

Professional Transponder Key Programming in Sydney

Nearly every car manufactured in Australia since 1999 uses a transponder-based immobiliser system. The technology was introduced to combat vehicle theft, and it works remarkably well -cars with transponder immobilisers are statistically far less likely to be stolen than those without. But the same technology that protects your car also means that replacing or adding a key is no longer as simple as cutting a metal blank at the hardware store.

At Car Locksmith Sydney we specialise in transponder key programming for all makes and models. Our mobile technicians carry the same dealer-level diagnostic platforms used by authorised service centres, allowing us to program transponder chips, reset immobiliser modules, and register new keys -all on-site, at your location, without the dealership price tag.

How Transponder Immobiliser Systems Work

Understanding how the technology works helps explain why professional programming is essential and why a simple key copy from a hardware kiosk will not start your car.

The Transponder Chip

Inside the plastic head of your car key sits a small glass capsule or ceramic wafer containing an electronic transponder chip. This chip is passive -it has no battery. It is powered by the radio signal emitted by the antenna ring that surrounds the ignition barrel.

When you insert your key, the antenna sends a low-frequency radio pulse that energises the chip. The chip then transmits a unique identification code back to the antenna. This entire exchange happens in a fraction of a second and is invisible to the driver.

The Immobiliser Module

The vehicle’s engine control unit (ECU) or a dedicated immobiliser module receives the transponder code and compares it against a stored list of authorised key codes. If the received code matches an authorised entry, the module enables the fuel injection and ignition circuits, allowing the engine to start normally.

If the code does not match -or if no transponder signal is detected -the immobiliser keeps the fuel and ignition circuits disabled. The engine may crank (the starter motor turns), but it will never fire. This is why a mechanically correct key copy without a programmed transponder chip will turn the ignition but will not start the car.

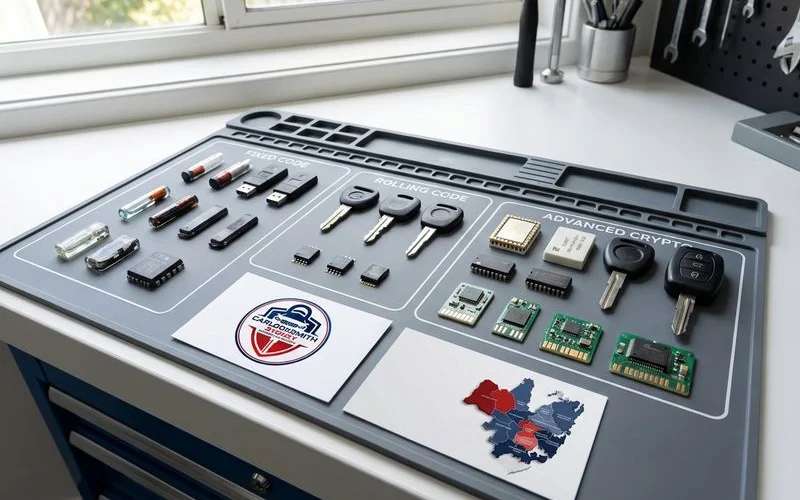

Types of Transponder Protocols

Not all transponder systems are created equal. Over the past two decades, vehicle manufacturers have developed increasingly sophisticated protocols to stay ahead of theft technology:

• Fixed code transponders -the chip transmits the same code every time. Used in older vehicles from the late 1990s and early 2000s. Relatively straightforward to program.
• Rolling code transponders -the chip and the immobiliser synchronise a code sequence that changes with each ignition cycle. More secure than fixed code, common in vehicles from the mid-2000s.
• Encrypted / crypto transponders -the chip uses cryptographic algorithms (such as AES-128) to generate a unique response to each challenge from the immobiliser. This is the current standard used by Toyota (G and H chips), Volkswagen Group (Megamos AES), and many European manufacturers. Programming requires access to the manufacturer’s security protocols through authorised diagnostic software.

Our equipment supports all three protocol types across all major vehicle brands, which is why we can handle everything from a 2002 Toyota Corolla to a 2024 BMW X5.

When You Need Transponder Key Programming

Adding a Spare Key

The most common reason drivers call us for transponder programming is to add a spare key. If you are down to your last working key, getting a spare cut and programmed now is significantly cheaper than dealing with an all-keys-lost scenario later. We register the new transponder alongside your existing keys -both old and new keys will work without any disruption.

Replacing a Faulty Transponder

If your key turns the ignition but the engine will not start, and the immobiliser warning light stays on or flashes, the transponder chip in your key may have failed. Chips can be damaged by physical impact, exposure to strong magnetic fields, or simply degrade over time. We can test the transponder output, confirm whether the chip is faulty, and either replace the chip within your existing key shell or supply a complete new key.

All Keys Lost -Immobiliser Reset

When you have lost every key to your vehicle, the immobiliser must be reset to a blank state before a new key can be registered. This is the most complex transponder programming job we perform, and it involves:

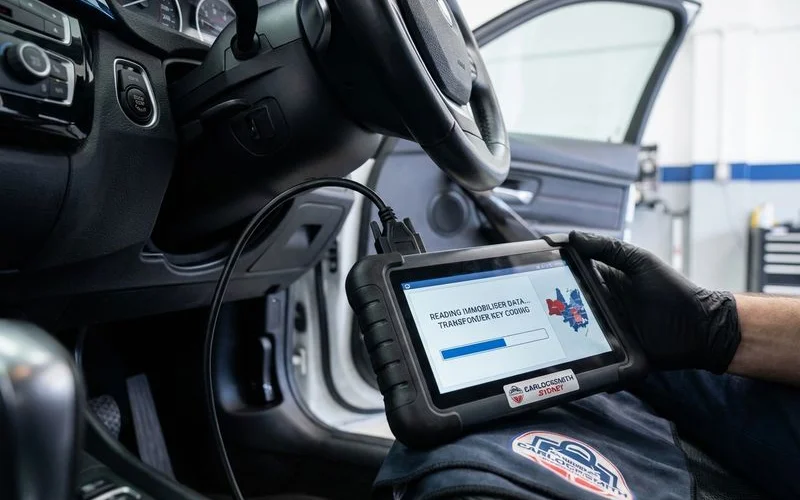

1. Connecting to the OBD-II port and establishing communication with the immobiliser module.
2. Authenticating with the module using manufacturer-specific security access protocols.
3. Erasing all previously registered transponder codes from the module’s memory.
4. Registering the new transponder as the first authorised key.
5. Optionally adding a second spare key to the system at the same time (recommended).

The all-keys-lost process varies significantly by manufacturer. Some vehicles require a PIN code derived from the VIN, others need a security token generated by the manufacturer’s online server, and some older models can be reset using bypass methods. Our diagnostic tools cover all of these scenarios.

After a Vehicle Purchase

If you have bought a used car and the seller only provided one key -or if you are unsure how many keys are registered to the immobiliser -we can interrogate the module to find out how many keys are currently programmed. We then add new keys or, if you want to ensure previous owners cannot start the car, perform a full immobiliser wipe and register only your keys.

Our Equipment and Capabilities

We invest heavily in diagnostic equipment to ensure we can program transponder keys for the widest possible range of vehicles. Our toolkit includes:

• Autel IM608 Pro -a leading automotive diagnostic platform with advanced immobiliser and key programming functionality across virtually all vehicle brands.
• Xtool X100 PAD3 -specialised key programming tool with broad coverage for Asian, European, and American vehicles.
• Lishi decoders -two-in-one tools that read the mechanical key cut and turn the lock, used when we need to generate a key profile without an original.
• Zed-Full -a transponder cloning and programming device with proprietary access to encrypted chip protocols.
• VVDI Key Tool -for generating and preparing transponder chips before vehicle-side programming.

This multi-tool approach means we are never reliant on a single device. If one platform does not support a particular model or protocol, we switch to another that does.

Pricing Transparency

Transponder programming costs vary depending on three main factors: the type of transponder protocol your vehicle uses, whether you have a working key or all keys are lost, and the specific make and model. We always provide a firm quote over the phone before dispatching a technician, so there are no surprises on arrival.

• Add spare transponder key (with working original): from $149
• Transponder chip replacement (faulty chip in existing key): from $179
• Remote and transponder combo programming: from $249
• All keys lost -immobiliser reset and new key: from $350

Every job includes a test and verification cycle to confirm the transponder is communicating correctly, and all parts and programming carry our standard workmanship warranty.

Call 0468 090 057 to discuss your transponder key needs, or request a callback through our website. We are available 7 days a week across the greater Sydney metropolitan area.
